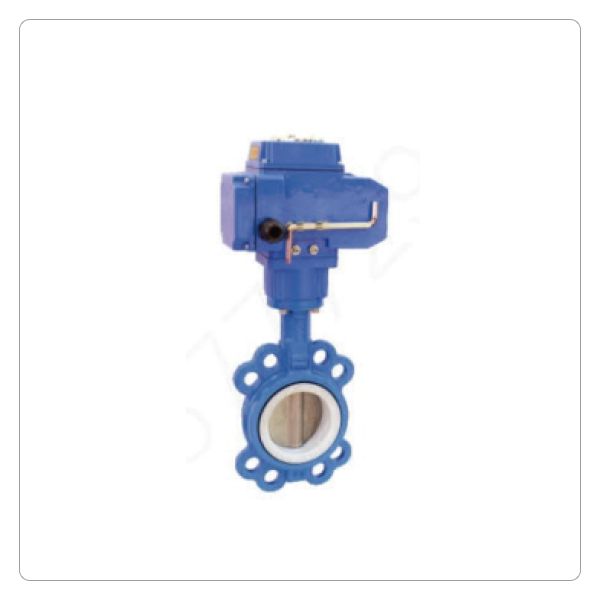

Electric Wafer Butterfly Valve

Product performance

Flange connection: GB/T8527, GB9113, can also be specified by the user

Structural length: GB/12221

Stress testing: GB/T13927; JB/T9092

Applicable media: fresh water, sewage, seawater, air, steam

Food, medicine, various oils, acids, alkalis, salts, etc.

Valve body: iron ball

Valve shaft: SUS410/SUS316

Butterfly plate: ductile iron electroplating, stainless steel

Valve seat: EPDM, PTEE

Seat backrest: phenolic resin

Bushing: Bronze, PTFE

Sealing ring: NBR, EPDM

Round gasket: SUS316 brass

Split ring: SUS316 brass

Retaining ring: spring steel

Appearance and connection dimensions
